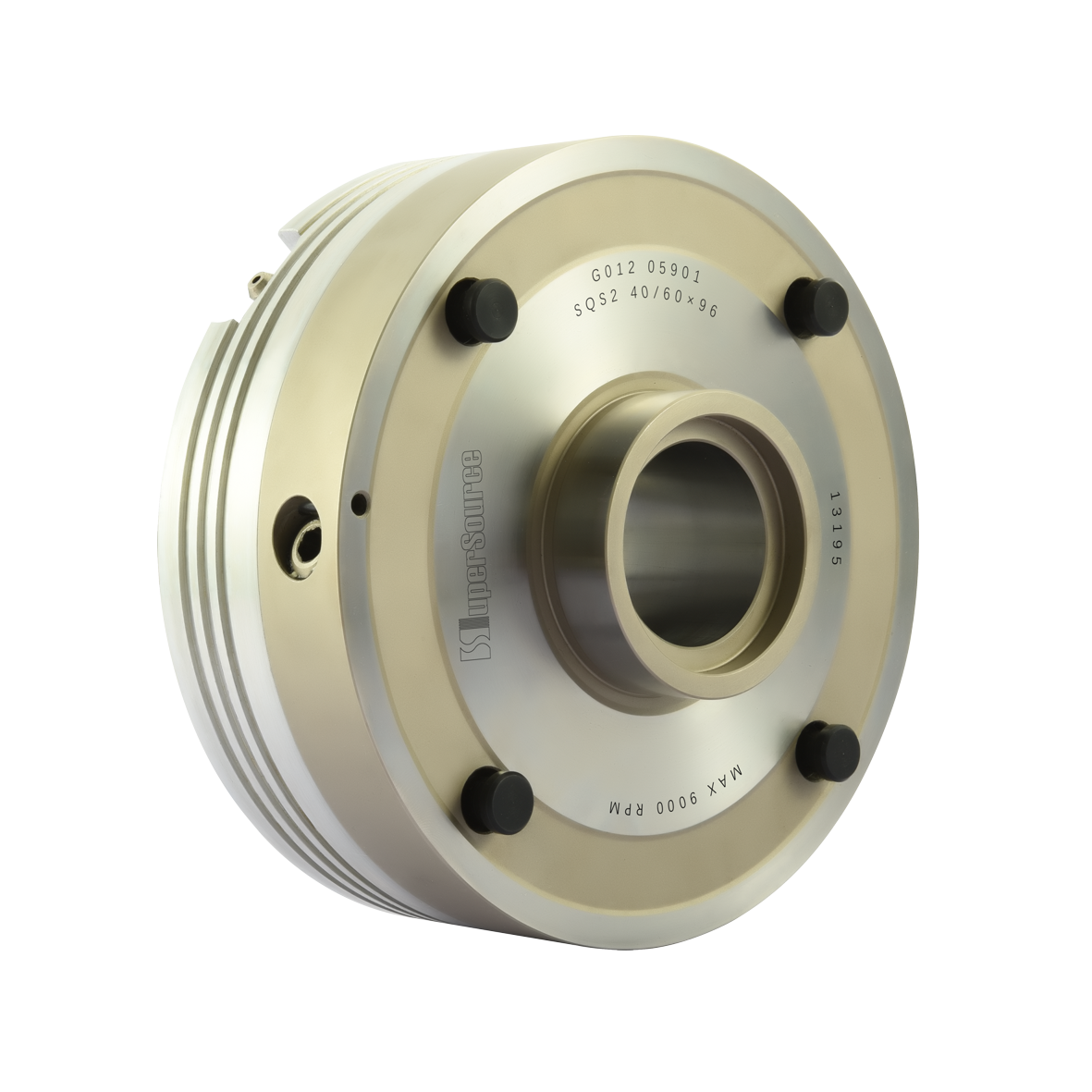

SuperSource Type SQS2 Pneumatic Chuck


Product Description
The Type SQS2 Pneumatic Hydro-lock Chuck from SuperSource Tooling is designed for high-efficiency tool changes in woodworking environments. Equipped with a pneumatic pull stud mechanism, it ensures fast, secure, and repeatable tool clamping. This versatile chuck is compatible with a wide range of equipment, including double-end milling machines, automatic feeding systems, disc milling machines, and flanges.
Max. Operation Speed: 9000 rpm
Highlight Features
- Corrosion Resistance: Nickel-plated surface offers superior protection against rust and corrosion, even in demanding environments.
- T-Wrench Pressurization: Quick and easy pressurization using an Allen T-wrench enables streamlined tool setup and changeover.
- Pneumatic Locking Mechanism: The integrated pneumatic pull stud simplifies tool installation and removal, significantly improving production throughput.
Category: Hydro-lock Sleeves
SKU | Product | D | D1 | D2 | D3 | L | L1 | L2 | N |
---|---|---|---|---|---|---|---|---|---|
G012 05901 | SQS2 40/60 x 96 | 40 | 60 | 160 | 62 | 96 | 35 | 3.7 | 6 |
G012 05902 | SQS2 40/80 x 96 | 40 | 80 | 160 | 62 | 96 | 17.5 | 21.2 | 6 |
Please note that all the dimensions in the above table are in metric (mm). |
