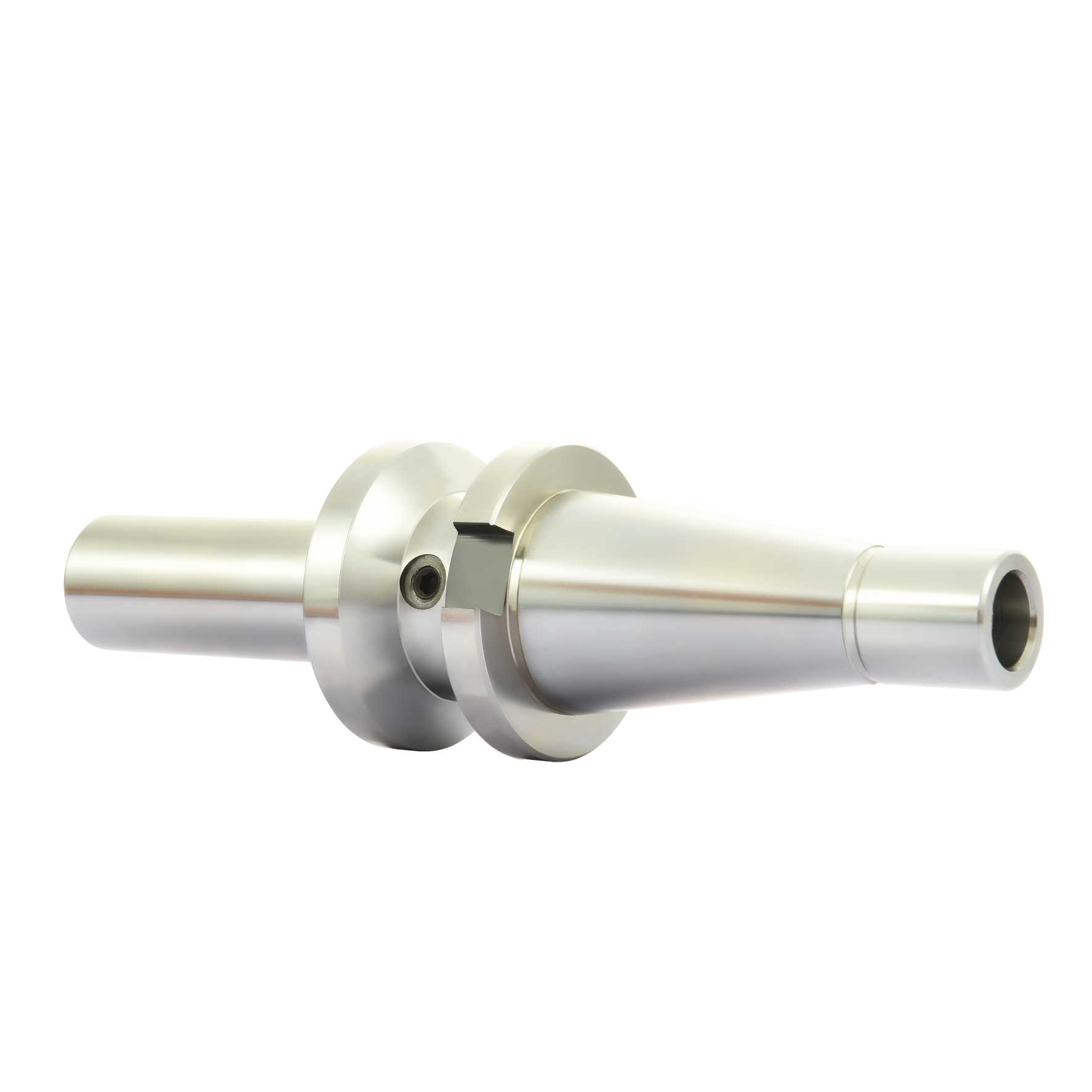

SuperSource Hydraulic Tool Holder


Product Description
The Hydraulic Tool Holder from SuperSource Tooling is engineered for high-speed woodworking operations, such as drilling and finishing. Its precision hydraulic design minimizes clearance and maximizes clamping stability—delivering superior performance, accuracy, and tool longevity.
Max. Operation Speed: 25000 rpm
Highlight Features
- Enhanced Clamping Precision: Hydraulic expansion minimizes tool clearance, resulting in stable clamping that improves machining accuracy and reduces vibration and tool wear.
- Superior Clamping Force: Delivers stronger clamping than standard holders, keeping tools securely in place during high-speed operations.
- Easy Pressurization: Operates via pressure screw and Allen T-wrench for fast, user-friendly setup and tool changes.
- Customization Available: Tailored configurations available to suit specific applications in knife manufacturing, finishing, and other precision machining processes.
Download: SuperSource Hydraulic Tool Holder PDF
Category: Hydro-lock Sleeves
SKU | Product | D | D1 | D2 | D3 | L | L1 | L2 | L3 | L4 | N |
---|---|---|---|---|---|---|---|---|---|---|---|
G013 01001 | NT40-D30-124 | 63 | 30 | 42 | 25.3 | 219 | 80 | 24 | 95.7 | 28 | 6 |
Please note that all the dimensions in the above table are in metric (mm). |
