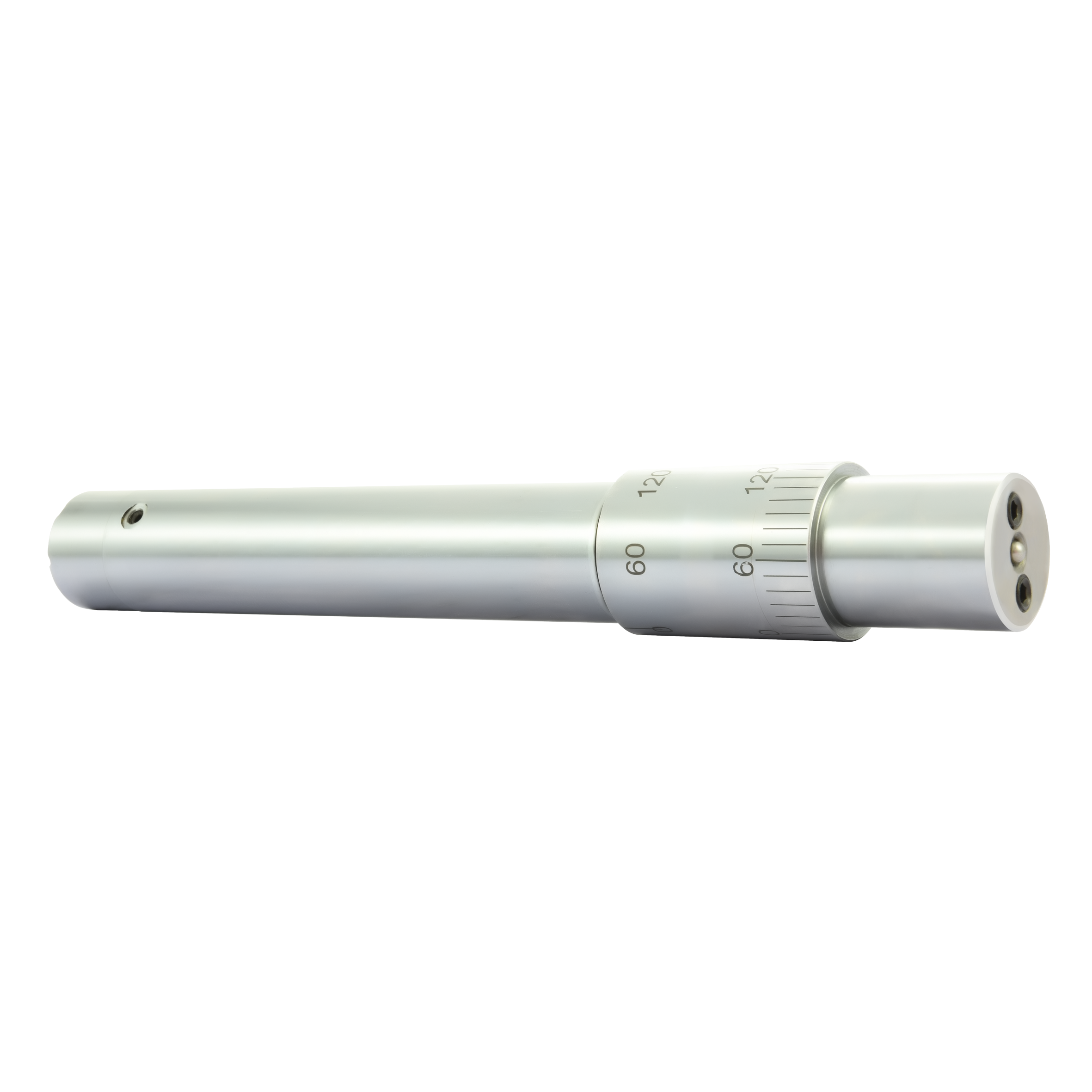

Hydraulic Expansion Shaft
Click to enlarge
Hydraulic Expansion Shaft
Product Description
Our hydraulic expansion shaft product is for knife manufacturing and testing.
Max. Operation Speed: 6000 rpm.
Highlight Features
- Compared with regular shafts, hydraulic expansion shaft enables much smaller clearance and stabler clamping; therefore significantly increases the dynamic balancing accuracy for dynamic balancing equipment;
- Advanced surface heat and electroplating treatment ensure high hardness and excellent wear resistance and great resistance to corrosion and rust;
- Easy and quick pressurization with an Allen T wrench;
- Offer customized products for special requirements.
Download: SuperSource Hydraulic Expansion Shaft
Category: Hydro-lock Sleeves
| SKU | Product | D | D1 | D2 | D3 | L | L1 | L2 | L3 | L4 | N |
|---|---|---|---|---|---|---|---|---|---|---|---|
| G013 01003 | DPH 1-1/2" | 1-1/2" | 37.1 | 62 | 52 | 425 | 61 | 210 | 70 | 6 | |
| Please note that except the dimensions marked in imperial, all the other dimensions in the above table are in metric (mm). | |||||||||||
