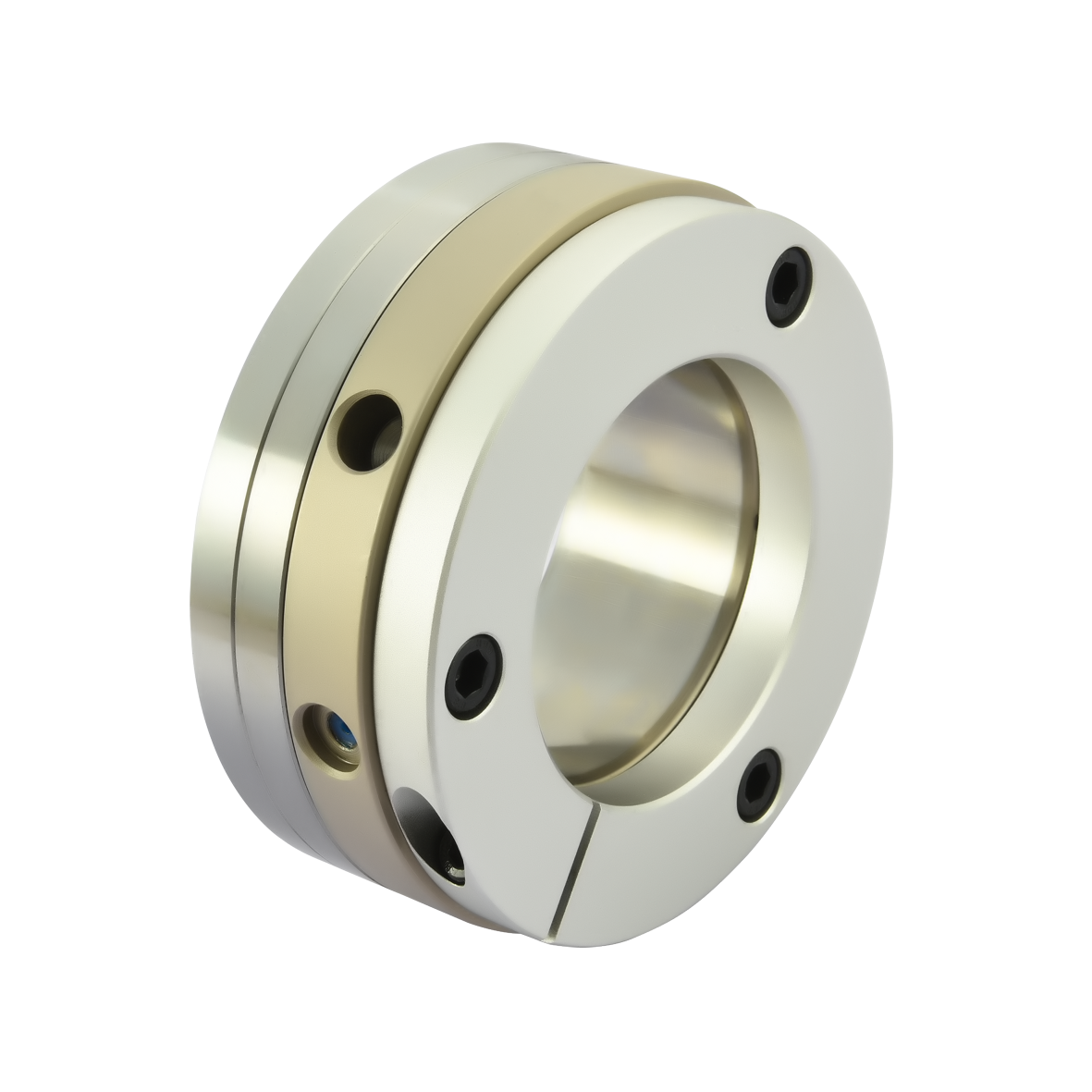

SuperSource Type AIL Hydro-lock Sleeve
Product Description
The Type AIL Hydro-lock Sleeve from SuperSource Tooling is designed for interchangeable tool assemblies and optimized for multi-segment cutting applications. It connects to tools using a secure safety lock collar and supports the installation of multiple sleeves on the same spindle, allowing greater flexibility and productivity in advanced machining setups.
Max. Operation Speed: 9000 rpm
Highlight Features
- Corrosion Resistance: Finished with advanced nickel plating for excellent resistance to rust and corrosion in demanding operating environments.
- T-Wrench Pressurization: Enables fast, reliable pressurization using a standard Allen T-wrench—streamlining assembly and minimizing downtime.
- Multi-Segment Cutting: Supports the mounting of multiple sleeves on a single spindle, making it ideal for multi-profile machining and complex tooling configurations.
Category: Hydro-lock Sleeves
| SKU | Product | D | D1 | D2 | D3 | D4 | D5 | L1 | L2 |
|---|---|---|---|---|---|---|---|---|---|
| G012 02601 | AIL 60/80 x 50 | 60 | 80 | 113 | 113 | 108 | 97 | 30 | 50 |
| G012 02602 | AIL 80/100 x 50 | 80 | 100 | 133 | 133 | 128 | 117 | 30 | 50 |
| G012 02603 | AIL 100/120 x 50 | 100 | 120 | 153 | 153 | 148 | 137 | 30 | 50 |
| G012 02604 | AIL 100/115 x 50 | 100 | 115 | 153 | 153 | 148 | 131 | 30 | 50 |
| G012 02605 | AIL 90/110 x 50 | 90 | 110 | 153 | 153 | 148 | 131 | 30 | 50 |
| Please note that all the dimensions in the above table are in metric (mm). | |||||||||
