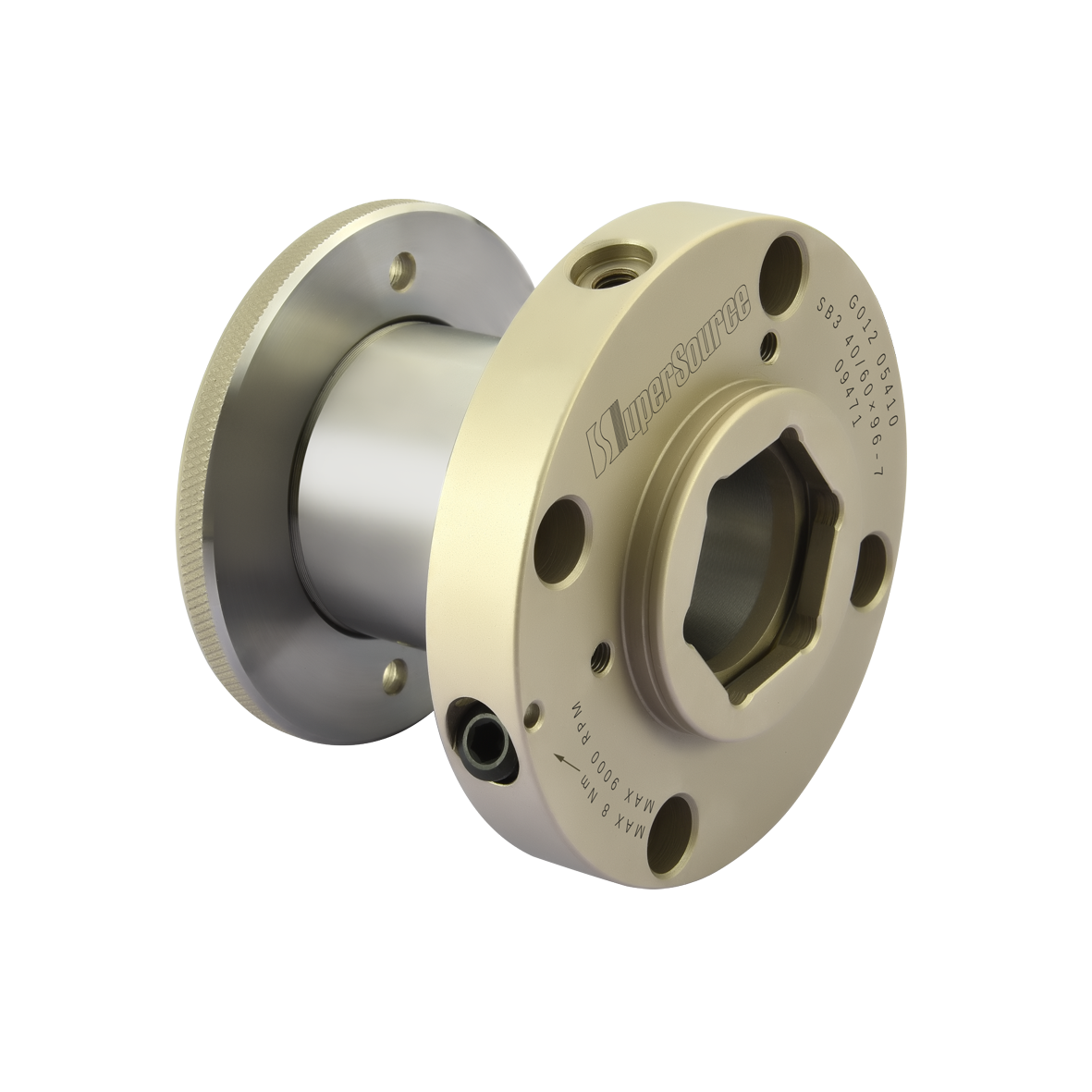

SuperSource Type SB3 Hydro-lock Sleeve


Product Description
The Type SB3 Hydro-lock Sleeve from SuperSource Tooling is engineered for interchangeable tool assemblies and is designed to fit machines with a hexagonal spindle profile. Offering precision, durability, and safety, it is well-suited for demanding industrial environments.
Max. Operation Speed: 9000 rpm
Highlight Features
- Versatile Compatibility: Available in configurations with either detachable or non-detachable transmission rings and multiple bolt options to suit most mainstream machines.
- Precision Machining: Inner and outer diameters and end faces are ground in a single process to deliver exceptional clamping accuracy and concentricity.
- Corrosion Resistance: Nickel-plated surface treatment protects against corrosion and rust, ensuring long-term durability even in harsh conditions.
- T-Wrench Pressurization: Quick and simple pressurization via Allen T-wrench ensures efficient tool changes and minimal downtime.
- Built-in Scaled Lock Nuts: Integrated lock nuts feature scale markings for accurate tool positioning, enhancing operational safety and repeatability.
Category: Hydro-lock Sleeves
SKU | Product | D | D1 | D2 | D3 | D4 | D5 | D6 | D7 | D9 | L | L1 | L2 | H | N |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
G012 05410 | Sb3 40/60 x 96-7 | 40 | 60 | 120 | 104 | 75 | 14 | 9 | 100 | 63 | 96 | 58.5 | 68 | 11 | 6 |
Please note that all the dimensions in the above table are in metric (mm). |
