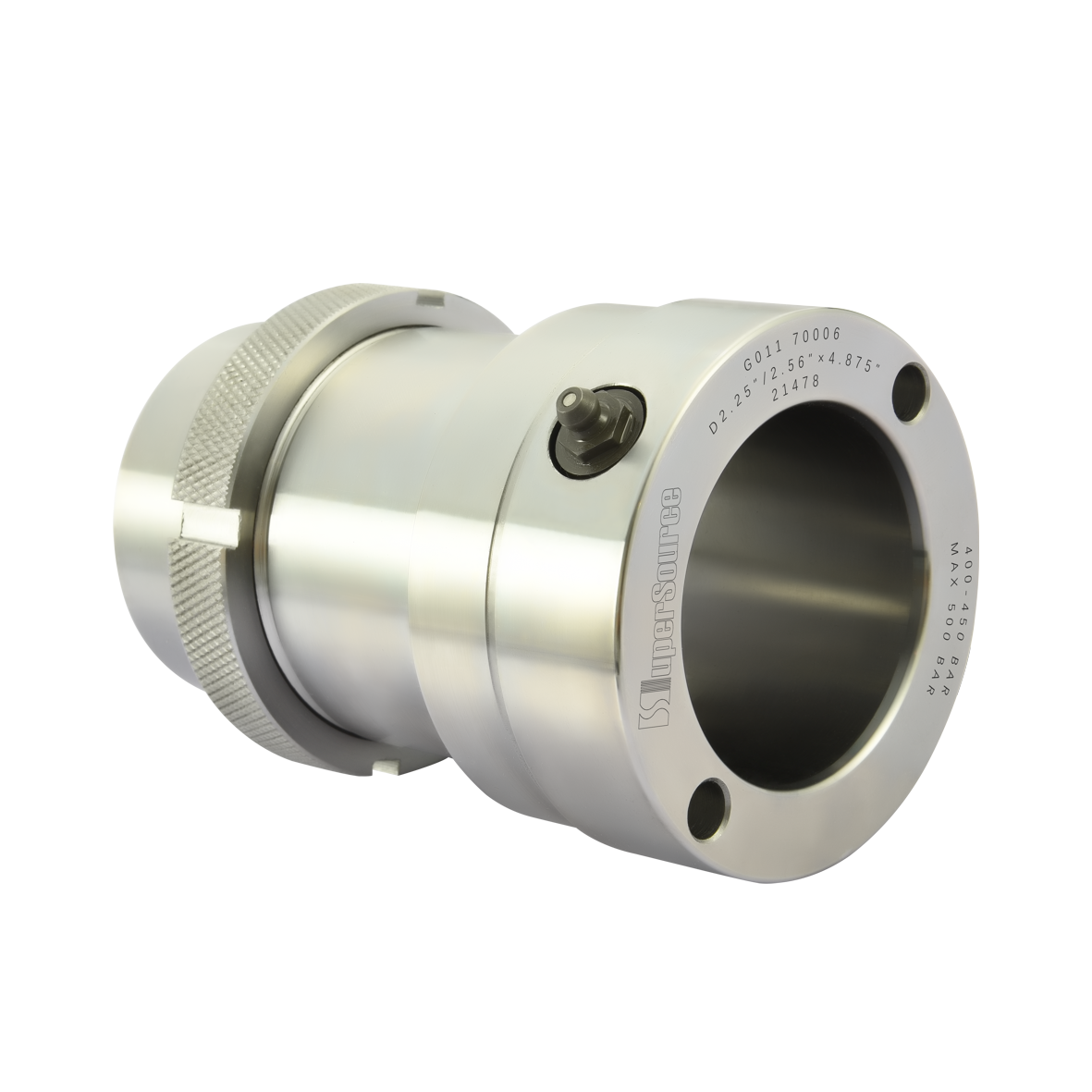

SuperSource Type D Hydro-lock Sleeve
Product Description
The Type D Hydro-lock Sleeve from SuperSource Tooling is specifically designed for the assembly of support bearings in machines equipped with bearings at both ends of the spindle. It offers reliable clamping, compact structure, and efficient pressurization—making it ideal for precision setups in limited spaces.
Max. Operation Speed: 9000 rpm Operation Pressure: 40-45MPa
Highlight Features
- Grease Pump Pressurization rpm: Utilizes a high-pressure grease pump to enable fast and reliable assembly, minimizing downtime and streamlining operations.
- Compact and Stable Design: Engineered with a minimal radial profile, this sleeve enhances structural stability and is well-suited for space-constrained installations.
- Built-in Lock Nuts: Integrated lock nuts allow for precise tool adjustments, boosting both safety and alignment accuracy during setup.
Download: SuperSource Type D Hydro-lock Sleeve PDF
Category: Hydro-lock Sleeves
| SKU | Product | D | D1 | D2 | D3 | D4 | D5 | D6 | D7 | L | L1 | L2 | L3 | L4 | H |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| G011 70006 | D 2-1/4"/2.756" x 4-7/8"-2-1/4" | 2-1/4" | 66.68 | 86.36 | 82.55 | 2.756" | 82.55 | 74 | 8.5 | 4-7/8" | 38.1 | 58.05 | 22.23 | 41.28 | 10 |
| G011 70007 | D 3"/3.544" x 5-5/8" | 3" | 85.73 | 111 | 111 | 3.544" | - | - | - | 5-5/8" | 50.8 | - | 25.25 | 47.55 | - |
| G011 70008 | D 3-15/16"/6" x 2-1/2" | 3-15/16" | 6" | 189.4 | 189.4 | 6" | - | - | - | 2.5" | 3.5 | - | - | 34.6 | - |
| Please note that except the dimensions marked in imperial, all the other dimensions in the above table are in metric (mm). | |||||||||||||||
