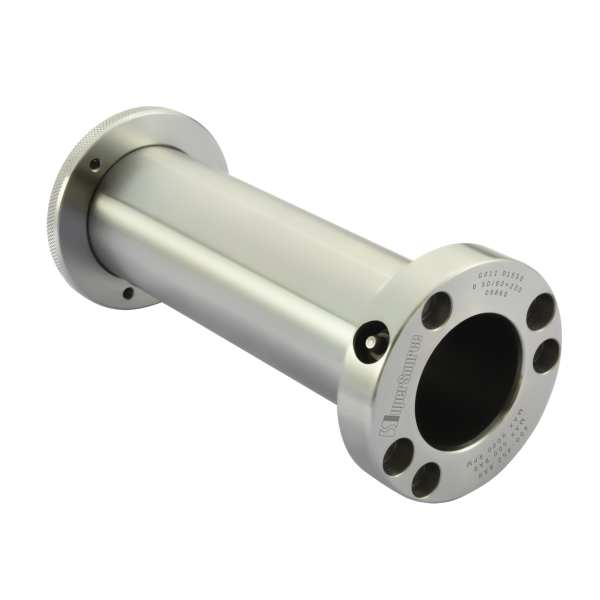

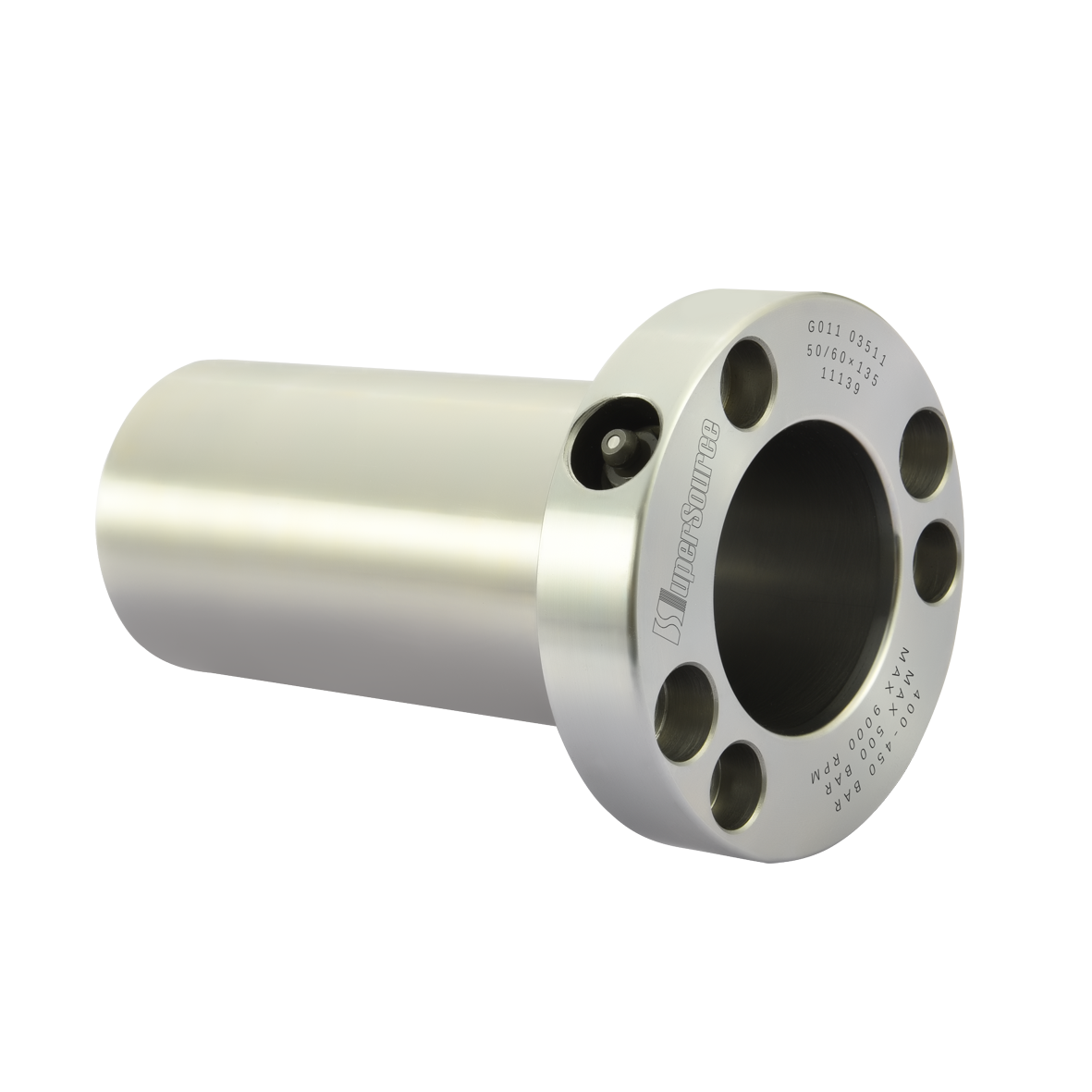

SuperSource Type C Hydro-lock Sleeve
Product Description
The Type C Hydro-lock Sleeve from SuperSource Tooling is purpose-built for interchangeable tool assemblies, offering smooth tool switching and expanded flexibility. Its extended length and integrated locking ring support simultaneous multi-tool setups, making it ideal for operations that demand versatility and efficiency.
Max. Operation Speed: 9000 rpm Operation Pressure: 40-45MPa
Highlight Features
- Grease Pump Pressurization: Enables quick and secure pressurization using a high-pressure grease pump, ensuring efficient and reliable tool assembly.
- Wide Compatibility: Offered in a range of sizes to accommodate most standard grips, allowing seamless integration into existing machining setups.
- Multi-Tool Assembly: Designed to support multiple tool installations on a single spindle when paired with compatible accessories, maximizing productivity and process adaptability.
Download: SuperSource Type C Hydro-lock Sleeve PDF
Category: Hydro-lock Sleeves
| SKU | Product | D | D1 | D2 | D4 | D5 | D6 | D7 | D8 | L | L1 | H | K |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| G011 03006 | C 1-13/16"/60 x 75 | 1-13/16" | 60 | 93 | 74 | 14 | 9.5 | 75 | 15 | 75 | 55 | 8.5 | 10 |
| G011 03010-03020 | C 1-13/16"/65 x (85-85) | 1-13/16" | 65 | 98 | 80 | 14 | 9.5 | 80 | 15 | 85/135/235/285 | 65/115/215/265 | 8.5 | 10 |
| G011 03516-03522 | C 40/50 x (75-190) | 40 | 50 | 83 | 64 | 10 | 6 | 65 | 15 | 75/95/115/165/190 | 55/75/95/145/170 | 5.5 | 10 |
| G011 03530-03535 | C 50/60 x (75-230) | 50 | 60 | 93 | 74 | 14 | 9.5 | 75 | 15 | 75/95/115/140/230 | 55/75/95/120/210 | 8.5 | 10 |
| Please note that except the dimensions marked in imperial, all the other dimensions in the above table are in metric (mm). | |||||||||||||
