Quick-lock Cutterhead

Click to enlarge
Quick-lock Cutterhead

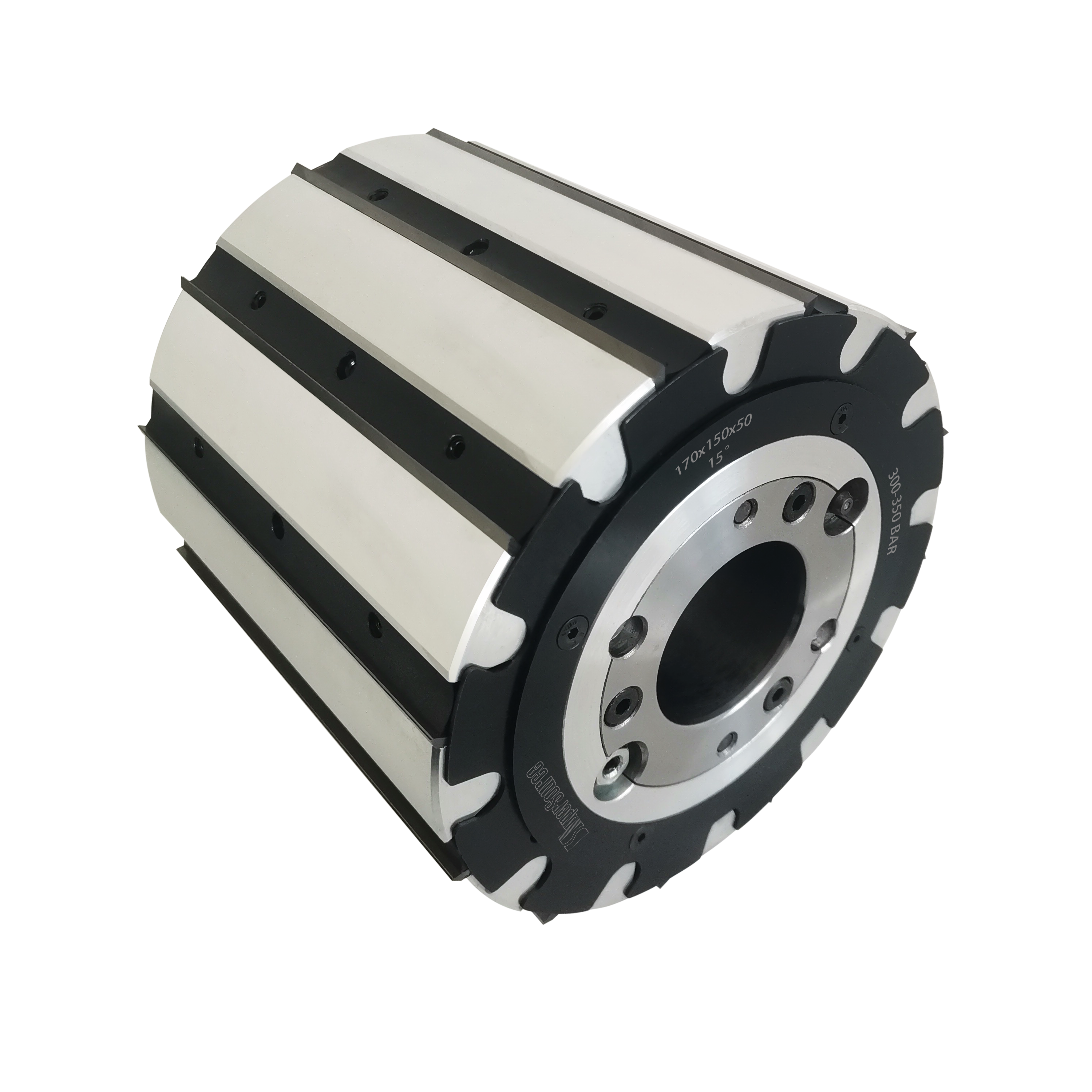

Product Description
Grease pump pressurized hydraulic locking cutterhead for quick-lock knives, compatible with most high-speed planers/moulders on the market.
Maximum Operation Speed: 8000 rpm.
Operation Pressure: 30-35 MPa, Maximum Pressure: 40 MPa.
Knives sold separately.
Highlight Features
- The hydraulic clamping system provides higher concentricity and more stable fastening, significantly improving surface finish quality;
- Durable to withstand continuous operation on high-speed moulders at a high feeding rate;
- Achieves extremely close clearance between bore and head once pressurized; eliminates sliding & running to prevent head and moulder deformation and wear;
- Safe and convenient pressurization with a grease pump;
- Pressing block design utilizes centrifugal force to provide increasing clamping force as cutterhead rotates, improving stability during cutting;
- Equipped with stop rings to prevent the pressing block and knives from falling off during blade replacement, enabling simple and quick knives replacement for both vertically or horizontally mounting;
- Compatible quick-lock knives have cutting edges on both sides and can be resharpened multiple times. Quick-lock knives offer a compact, flexible design with various material options(see quick-lock knife products for details).
Download: Quick-lock Cutterhead PDF
Category: Cutterheads
SKU | H021 |
Product Type | Quick-lock Cutterhead |
Cutterhead Material | High-strength Steel or Aluminum Alloy |
Outer Diameter D | 166.5 mm |
Bore Diameter D1 | 50 mm |
Cutterhead Length L | 150 mm |
Cutting Angles | 15° |
Knife Pockets | 12 |
Operation Pressure | 30-35 MPa |
Maximum Pressure | 40 MPa |
