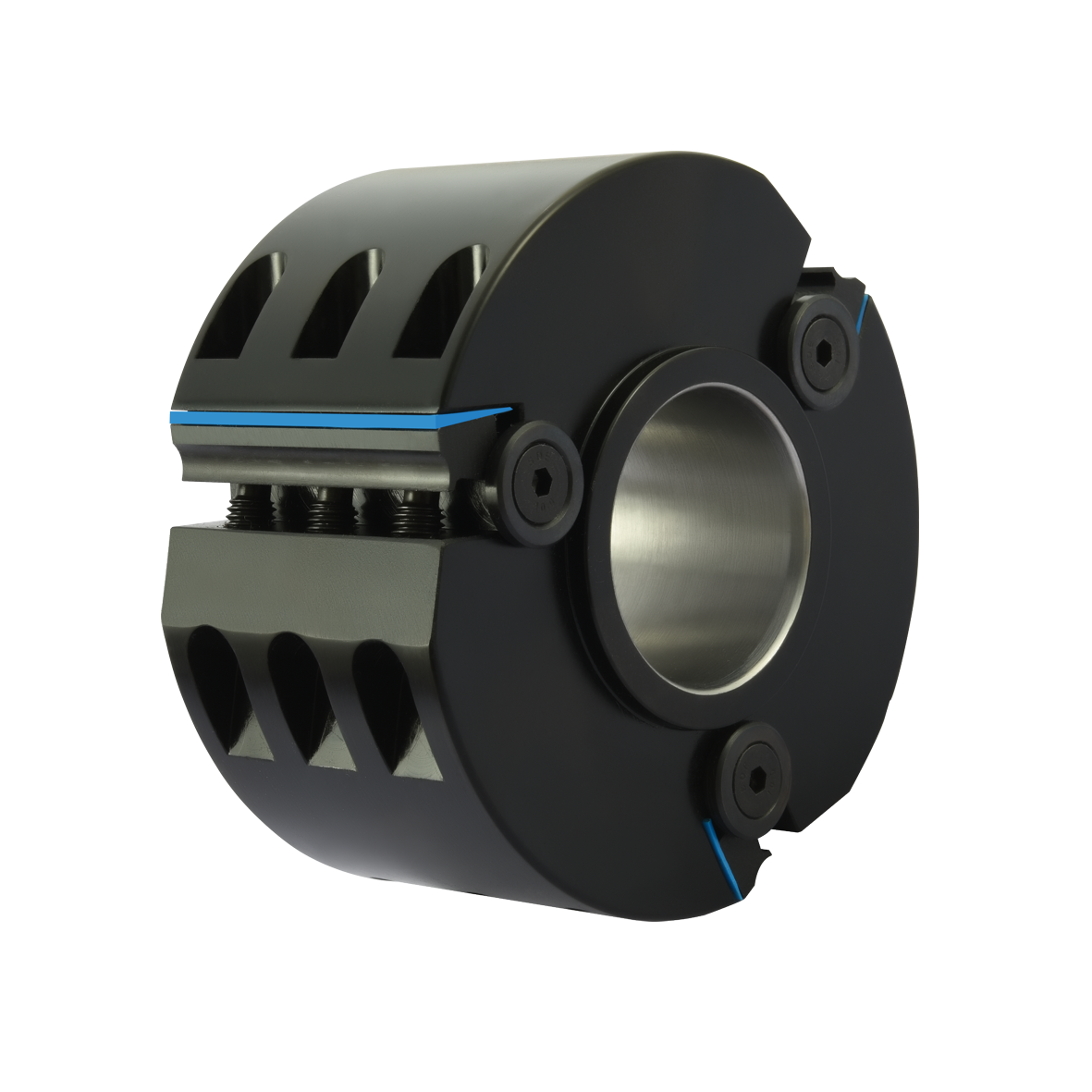

Multi-profile Insert Cutterhead
Click to enlarge
Multi-profile Insert Cutterhead
Product Description
These versatile heads are designed for applications including end work on flooring and cabinet door profiles, compatible with most spindle shapers in the market.
Maximum Operation Speed: 8000 rpm.
Operation Pressure: 30-35 MPa, Maximum Pressure: 40 MPa.
Knives sold separately.
Highlight Features
- Special manufacturing processes ensure extremely precise positioning of profile knives in the knife pockets;
- Low vibration and high precision during profiling lead to fine surface finishes;
- Designed to accommodate a wide variety of profiles, including deep profiles, easy to assemble and disassemble profile knives;
- Available in both straight bore and hydraulic locking types.
Download: Multi-profile Insert Cutterhead PDF
Category: Cutterheads
| SKU | H013 (Straight Bore) or H023 (Hydro-lock) |
| Product Type | Multi-profile Insert Cutterhead |
| Cutterhead Material | HSS |
Outer Diameter D | 83 mm, 120.7 mm, or 150 mm |
Bore Diameter D1 | from 1-1/4" to 1-13/16" or from 40 mm to 50 mm |
Cutterhead Width | 54 mm, 68 mm, 73 mm |
Cutting Length L1 | 40 - 60 mm |
| Cutting Angles | 12° |
| Knife Pockets | 3 or 6 |
| Operation Pressure | 30-35 MPa |
| Maximum Pressure | 40 MPa |
