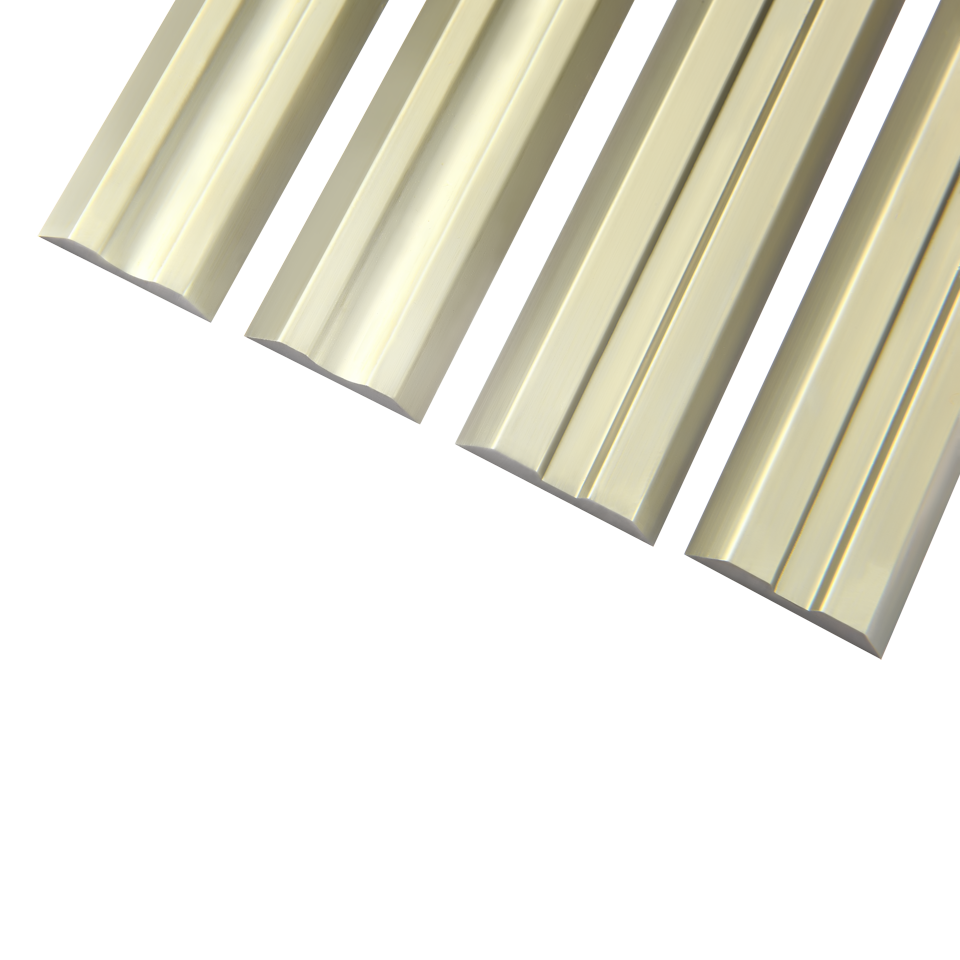

Quick-lock Planer Knife

Click to enlarge
Quick-lock Planer Knife
Product Description
Designed as cost-effective replacement planer blades for quick-change planer/moulder heads.
Highlight Features
- Cutting edges on both sides of the blade, can be re-grinded many times to significantly increase the service life of the blade and reduce cost;
- Machined using advanced CNC equipment to ensure a highly precise and smooth knife surface, which leads to a superfine surface finish;
- With strong interchangeability and high positioning accuracy, our products are compatible with most quick-change cutterheads in the market, especially those with centrifugal structures;
- Designed for quick and easy assembly;
- We offer both T1-HSS and Micro-Grain C3 carbide knives for extremely long service life.
Download: Quick-lock Planer Knife PDF
Category: Knives
SKU | Product Type | Material | Knife Length L | Knife Width W | Knife Thickness T |
---|---|---|---|---|---|
K051 04 | DT | T1 | ≤720 mm | 14 mm | 2.56 mm |
K052 04 | DC | T1 | ≤720 mm | 16 mm | 3.00 mm |
K051 09 | DT | C3 | ≤600 mm | 14 mm | 2.56 mm |
K052 09 | DC | C3 | ≤600 mm | 16 mm | 3.00 mm |
Custom knife dimensions available upon request |
